- Sterilization Port Diameter: φ36 mm, φ22 mm
- Heating Zone Depth: 8.5cm, 15.2cm
- Heating Time to Max. Temperature: 15mins
- Rapid 2-second sterilization at 930°C, using durable alumina ceramic for efficient and reliable performance

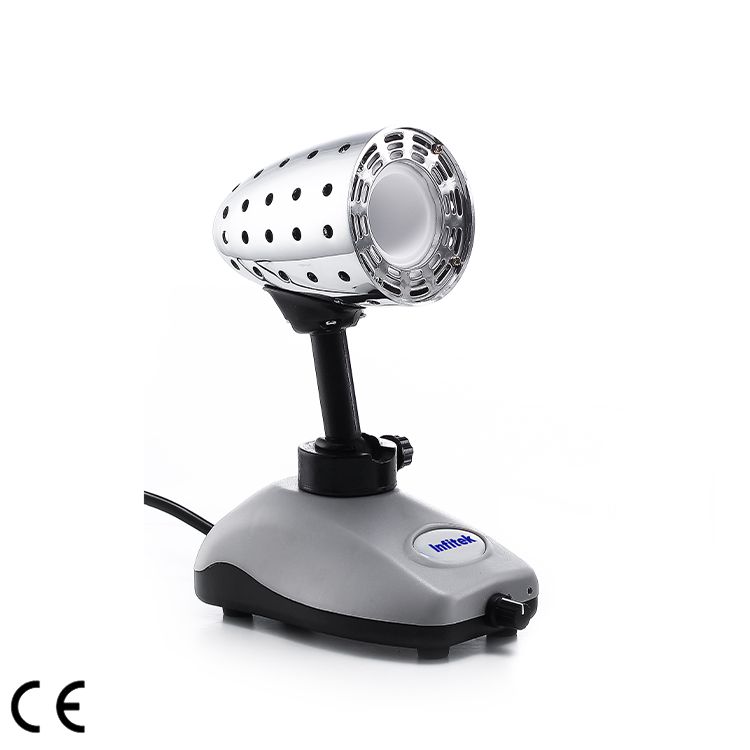

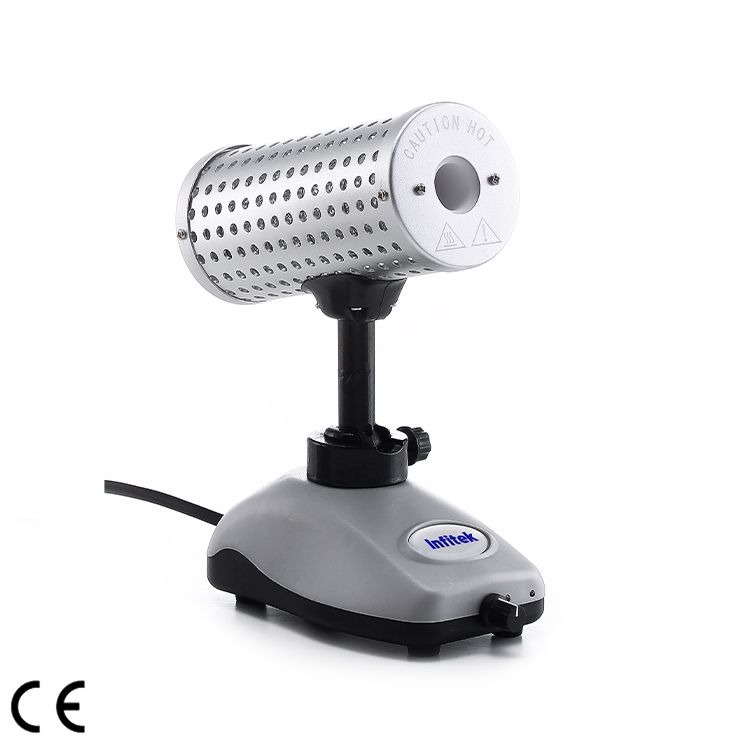

Bacti-cinerator Sterilizer, BCS-I, BCS-II
설명
The sterilizer uses infrared heat for sterilization and is suitable for high-temperature sterilization of inoculation loops, inoculation needles, tube mouths, bottle mouths and other items. It is characterized by ease of use, simple operation, no environmental pollution, no open flames, wind resistance, and safe operation. It can be widely applied for microbiological experiments in environments such as biological safety cabinets, laminar flow hoods (or clean benches), near fume extractors, and on mobile carts.
Features
- High Efficiency
The maximum temperature is 930℃±30℃, and the inoculation needle loop can be sterilized in just 2 seconds, effectively reducing the user’s workload.
- Superior Quality
The heating element utilizes premium 95% alumina ceramic, offering high wear resistance, corrosion resistance, high-temperature endurance, and anti-permeability.
- Flexible Design
The angle of the heater is adjustable, with a maximum depression angle of 45° and a maximum elevation angle of 75°. It can sterilize the mouths of test tubes and bottles containing liquids without spilling the liquid.
- Stable Performance
Using advanced microelectronic digital chips and automatic voltage change regulator, when the operating voltage changes within the range of 180V~240V, it can keep the heating chamber fluctuating within the set temperature (temperature at 930℃±30℃), effectively extending the life of the heating element.
Specification
Model | BCS-I | BCS-II |
Sterilization Port Diameter | φ36 mm | φ22 mm |
Diameter of Sterilizable Items | <φ35 mm | <φ20mm |
Heating Zone Depth | 8.5cm | 15.2cm |
Heating Time to Max. Temperature | 20mins | |
Max. Temperature | 900 ±30℃ | |
Standby Temperature | 600℃ | |
Electricity | 180V~240V, 50Hz | |
Power | 200W | |
Ambient Temperature | -10℃~40℃ | |
Relative Humidity | ≤95% | |
Package Dimension | 265*230*155mm | |
N.W./G.W. | 1.2kg/1.5kg |
