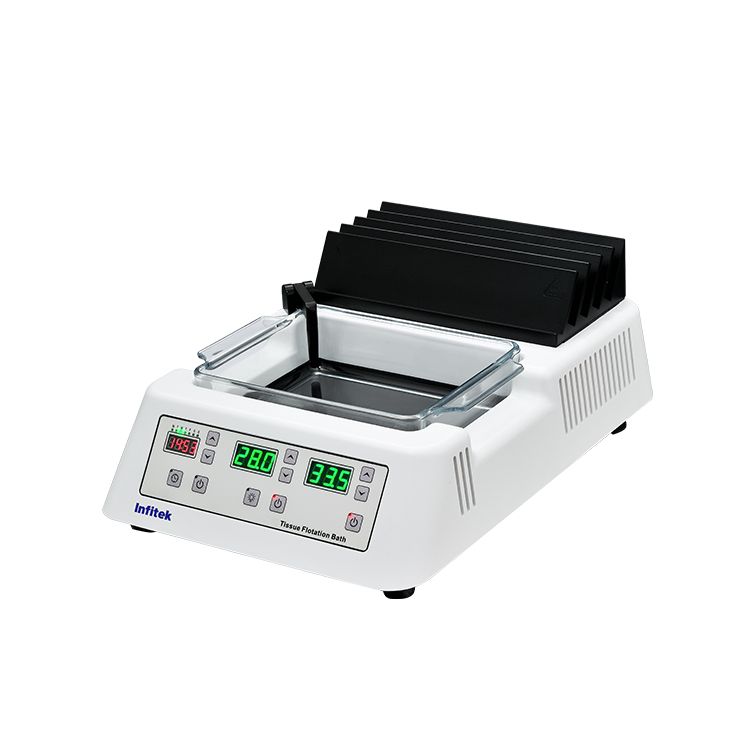

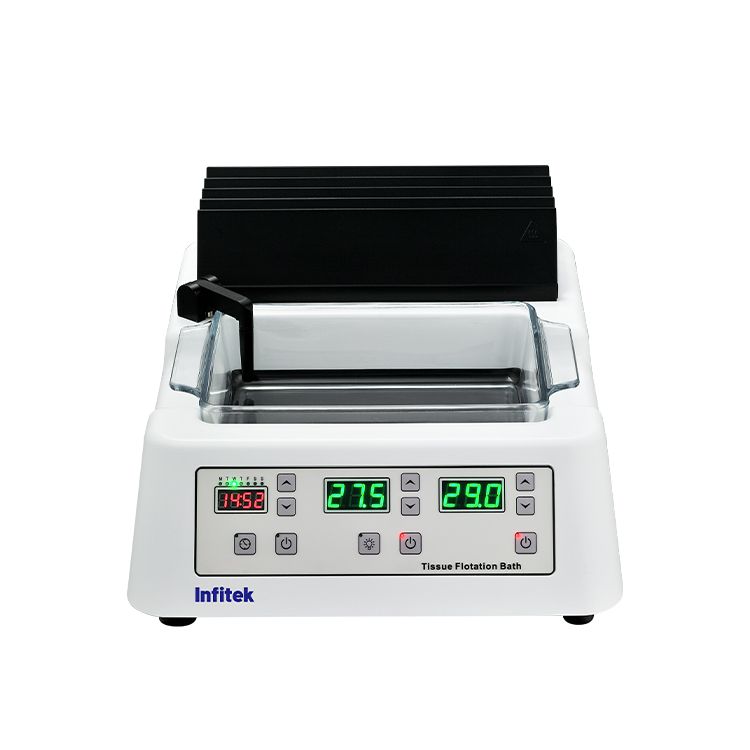

Floatation Workstation (Water Bath & Slide Dryer), TSBW-TK

  1. Temperature Control Range of Floating Slide: RT.~70℃
  2. Temperature Control Range of Baking Slide: RT.~99℃
  3. Dimensions of Water Bath Dish: 210*170*55mm
  4. Dimensions of Baking Table: 250*108mm (50 slides)

Share the product

설명

It is suitable for pathological research, hospitals, medical schools and research institutes, and food and drug inspection departments.

  • Fully computerized automatic control program, using imported single-chip microprocessor control, with complete functions and simple settings;
  • Large pure green digital display module, clear display, real-time display of all working status parameters, more intuitive data;
  • The temperature measurement adopts imported temperature measurement integrated circuit , which has high precision and reliable performance;
  • New heating element, fast heating, long life and energy saving;
  • Direct collection of the operating environment temperature ensures more accurate temperature measurement.
  • Pre-interface (optional) for real-time collection of online temperature (network);
  • With memory function, the set temperature is automatically retained after operation.
  • Triple overheat protection device, safe and reliable.
  • Low voltage DC lighting system, horizontal lighting design, no glare, clearer observation.
  • High borosilicate high temperature resistant glass heating pot, high light transmittance, split design, easy to change liquid and maintain.
  • PID two-way independently controls the temperature of the spreading and baking slices without affecting each other.
  • It has the functions of adjusting lighting brightness and display brightness.
  • Equipped with high-precision clock, multi-window independent display, and clear working status.
  • You can preset the machine on and off at any time every week. You can set the timer for the whole machine or for spreading and baking the slices separately.
  • With power-off memory and call-in self-start function.
  • Scientific physical slope and serrated baking table make it easy to put and take.
  • The baking table is made of special black material, which is corrosion-resistant and wear-resistant.
Model TSBW-TK
Temperature Control Range of Floating Slide RT.~70℃
Temperature Control Range of Baking Slide RT.~99℃
Dimensions of Water Bath Dish 210*170*55mm
Dimensions of Baking Table 250*108mm (50 slides)
Electricity AC 100V~120V/AC220V~240V, 50Hz/60Hz
Power 400W
External Dimension 310*460*135mm
Net Weight 6kg
