Independent heating and stirring
LCD display shows actual temperaturesand speed.
PID controller ensures a preciseand steady heating process, temperature up to 340℃.
Brushless DC motor enables morepowerful speed control.
External temperature sensor(PT1000)with accuracy at 0.2℃.
Overheating protection temperature at 420℃.
Stainless steel work plate with ceramiccoating provides good chemical resistant performance.
A wide variety of accessories are

Specifications	HPS-M340-S4
Work plate dimension	Φ135mm（5 inch）
Plate material	Stainless steel with ceramic coating
Motor type	Brushless DC motor
Stirring positions	4
Max. stirring quantity of single position (H2O)	10L
Max. magnetic bar	40mm
Speed range	200-1500rpm
Speed display	LCD
Temperature display	LCD
Control accuracy of sensor	±20rpm
Temperature range	25-340℃
Over temperature protection	420℃
Temperature display accuracy	±0.1℃
External temp. sensor (Optional)	PT1000（Accuracy±0.2℃）
IP Protection class	IP21
Motor rating input	1.8W×4
Power	515W×4
Heating Power	500W×4
Voltage	100-120V,60Hz; 200-240V,50 Hz
Dimensions [WxDxH]	698270128mm
Packing Dimensions [WxDxH]	800390250mm
Net Weight	10kg
Gross Weight	12kg
Permissible ambient temperature	5～40℃
Permissible relative humidity	80%RH

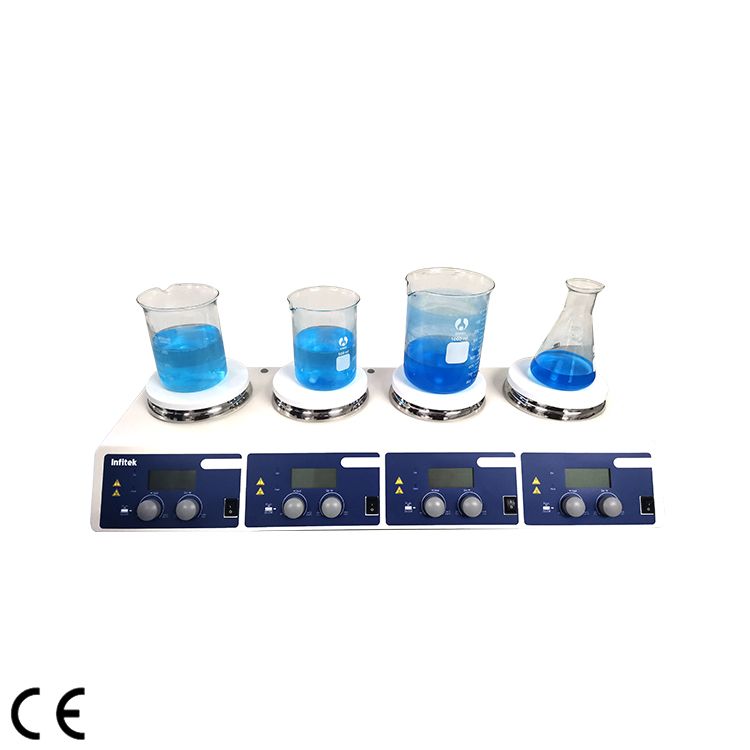

Hotplate Magnetic Stirrer, 4-Channel Type, HPS-M340-S4
