- Max speed/RCF: 4000RPM/4690×g, 5000RPM/3850×g
- Capacity: 100ml/200ml×4, 10ml×36
- Speed accuracy: ± 50r/min
- Temperature Setting:20~80℃

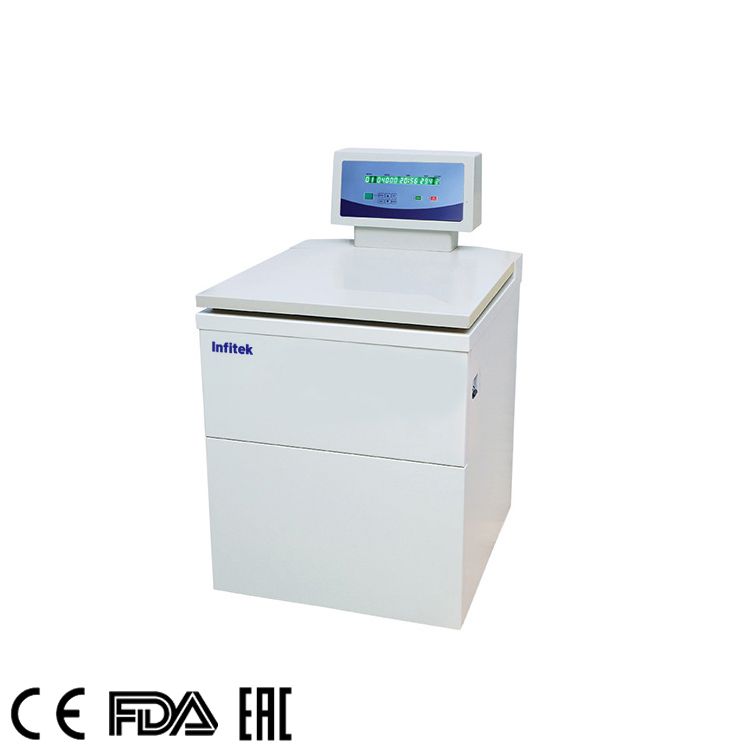

Oil Test Centrifuge, CFG-4B/5B (Oil)
설명
Technical performance
- Microcomputer control,electronic lock and AC variable-conversion motor, stable operation, low noise and high speed accuracy, which delivers high torque,
- Touch panel, programmable operation, operation data can be set according to demands and stored automatically.
- LED or LCD display, user-friendly interface, simple and convenient operations.
- The real-time conversation of speed and RCF is convenient for operation.
- It has self-locking device, lid safety device, over-speed safety device, over-temperature safety device, imbalance safety device and automatic alarm device.
- It has 10 files of acceleration and deceleration for your choice.
| Model | CFG-4B (Oil) | CFG-5B (Oil) |
| Max speed | 4000r/min | 5000r/min |
| Max RCF | 4690×g | 3850×g |
| capacity | 100ml/200ml×4 | 10ml×36 |
| Fitting Tubes Length | <195mm | ≥195mm |
| Speed accuracy | ± 50r/min | |
| Time setting | 1min~99min | |
| Temperature Setting | 20~80 ℃ | |
| Temperature Accuracy | ± 2 ℃ | |
| Noise | <65dB(A) | |
| Power supply | 220V/50Hz | |
| Dimension(LxWxH) | 650mmx710mmx1100mm | |
| Packing size(LxWxH) | 740mmx830mmx1300mm | |
| Net weight | 140kg | |
