- Max. stirring quantity [H2O]: 20L; 40L
- Speed range: 50~2200rpm; 50~2200rpm
- Max. torque: 40N·cm; 60N·cm
- Viscosity max.: 10000mPa·s; 50000mPa·s

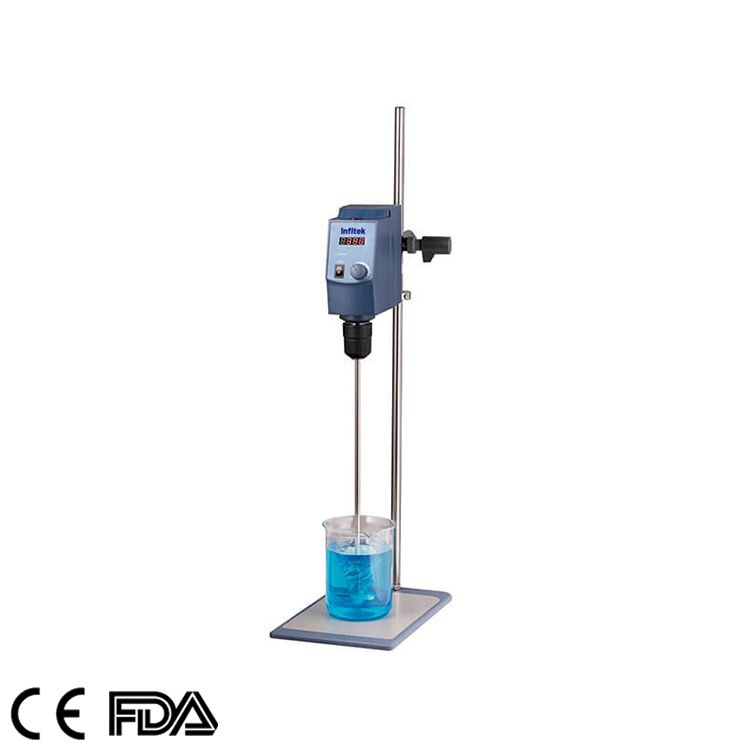

Overhead Stirrer, OHS Series, LED Digital
설명
Features
1. High reliability and outstanding performance
2. A wide range of speed from 50 to 2200rpm
3. Brushless DC motor for long life, maintenance free and explosion proof
4. LED screen for monitoring actual speed
5. Safety circuits allow for safe stop function in anti-stall or overload conditions
| Specifications | OHS-20 | OHS-40 |
| Max. stirring quantity [H2O] | 20L | 40L |
| Speed range | 50~2200rpm | 50~2200rpm |
| Max. torque | 40N·cm | 60N·cm |
| Viscosity max. | 10000mPa·s | 50000mPa·s |
| Weight | 2.8kg | 2.8kg |
| Motor type | Brushless DC motor | |
| Speed display | LED | |
| Overload protection display | LED | |
| Chuck range diameter | 0.5~10mm | |
| Motor input power | 60W | 120W |
| Motor output power | 50W | 100W |
| Power | 70W | 130W |
| Voltage | 100~240V, 50/60 Hz | |
| Dimension [WxHxD] | 83 x 220 x 186mm | |
| Protection class | IP21 | |
| Permissible ambient temperature and humidity | 5~40°C, 80%RH | |
