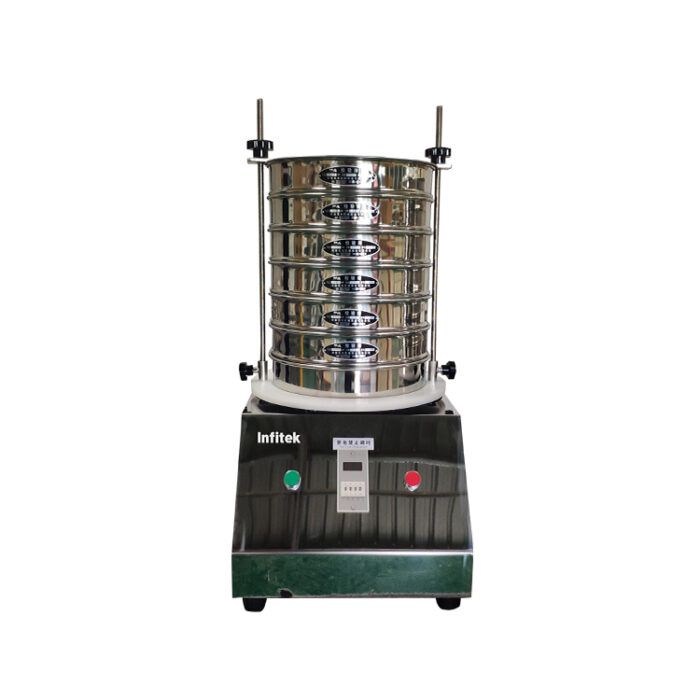

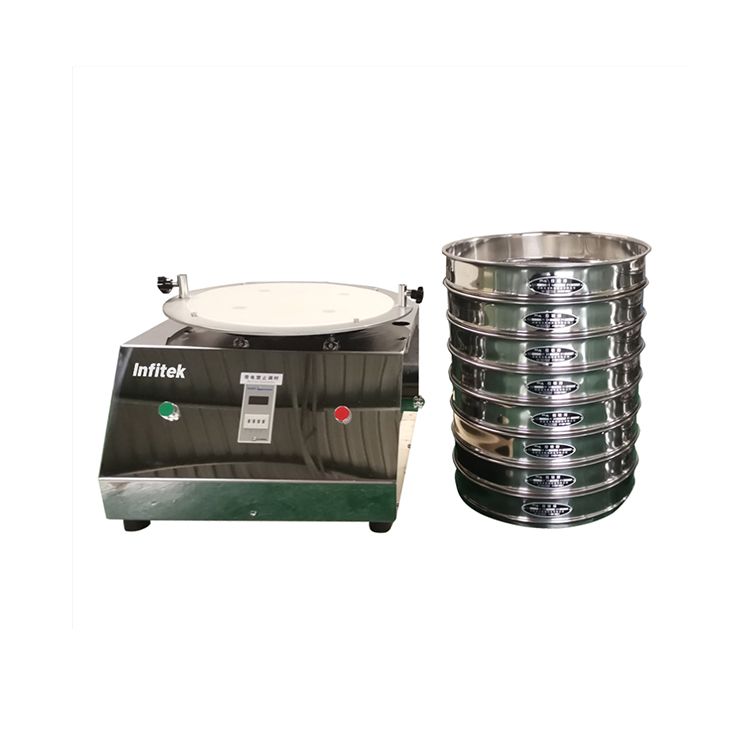

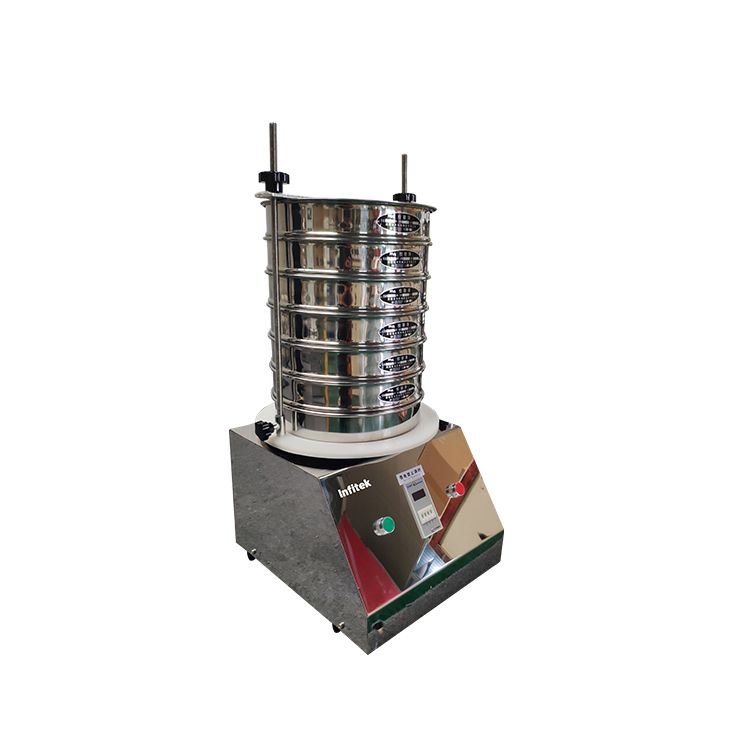

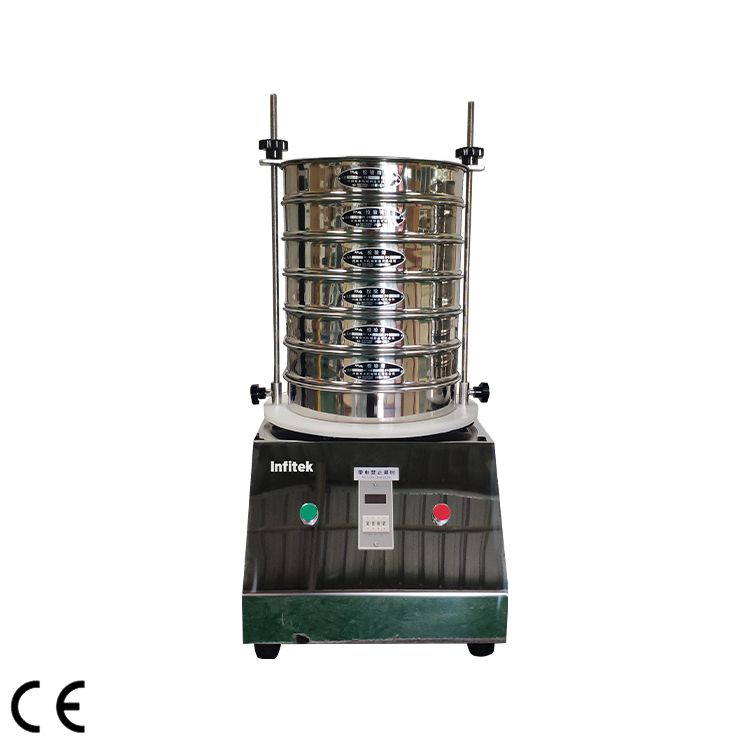

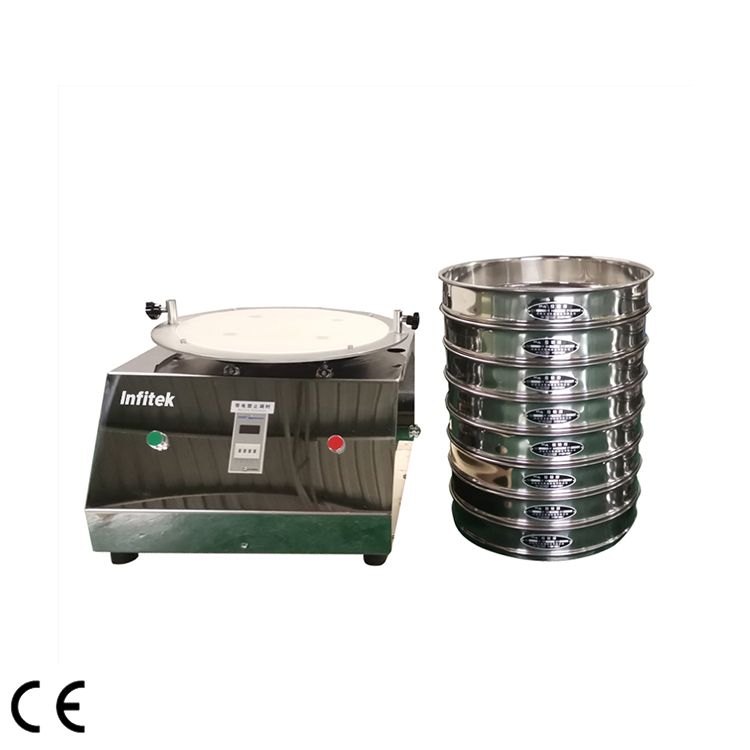

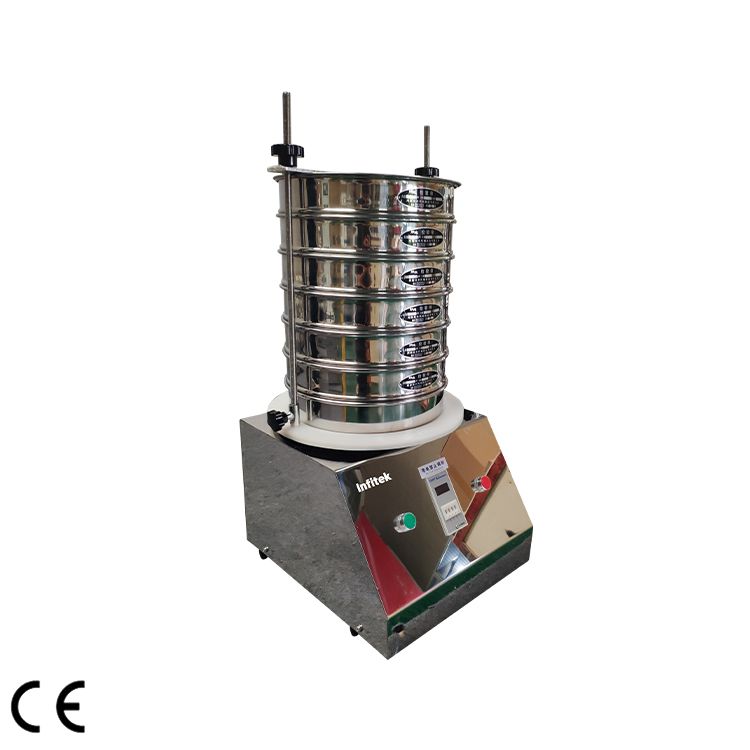

Sieve Shaker, TS-300

  • Diameter ofSieve:≤φ300mm
  • Sieve Size:025~50mm
  • Vibration Amplitude:0~3mm
  • Vibration Frequency:1440times/min

Share the product

카테고리:

설명

Application

It is widely used in scientific research units, laboratories, inspection rooms, production control, etc. in food, medicine, chemical industry, abrasives, pigments, mining, metallurgy, geology, ceramics, national defense and other industries.

Features

  • High efficiency, compact and durable design, any powder and liquid can be sieved.
  • Small size, easy to move without occupying space.
  • The sieve machine can be placed up to eight layers of test sieves (including bottom sieves), which can precisely separate a granular material into 2~7 particle segments at the same time.
  • Automatic shutdown can be timed.
  • To ensure the repeatability of the experiment.
  • Full-featured and easier to operate.
  • Low noise and light weight.
  • Platform operation, no need to fix.
  • Vibrating screen mesh can be selected according to needs.

Specification

Model TS-300
Diameter of Sieve ≤φ300mm
Sieve Size 0.025~50mm
Motor Power 0.18kW
Sound Emission <50dB
Vibration Amplitude 0~3mm
Vibration Frequency 1440times/min
Electricity 220V/50Hz
External Dimension(L*W*H) 470*430*370+N*60mm
N.W./G.W. 40kg/45kg
Package Dimension(L*W*H) 540*480*450mm
