- Spectrophotometric Mode: Concave Grating
- Wavelength Range: 400-700nm
- Wavelength Interval: 10nm
- D/8 geometrical optics

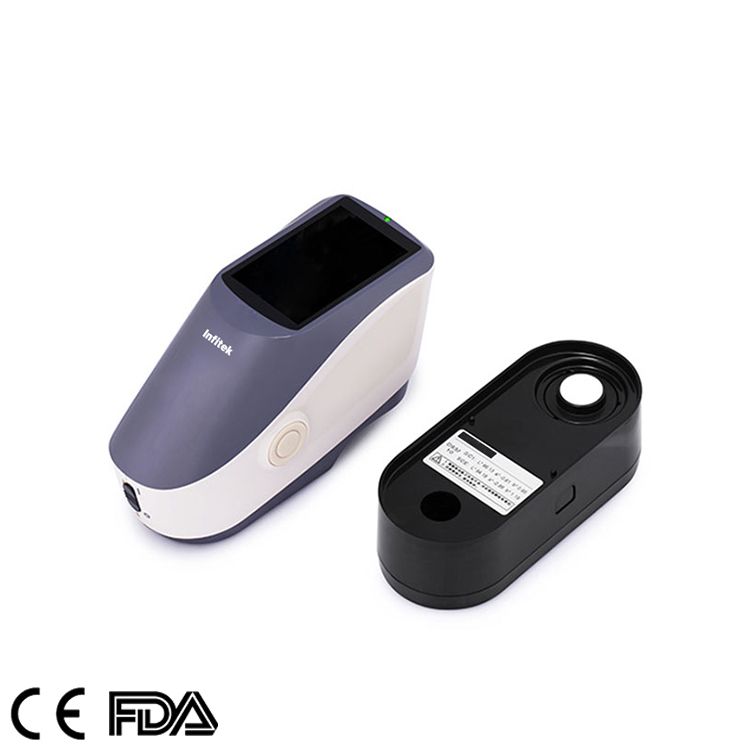

Portable Spectrophotometer, spectrocolorimeter, SP-CLR301
설명
1. Perfect combination of beautiful appearance and the human body mechanics structural design;
2. B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil
3.Use long life and low power consumption combined LED light source
4. Switchable 8mm/4mm aperture, support both SCI and SCE at the same time;
5. Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;
6. High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;
7. USB port, widely useful;
8. Super stain-resistant and stable standard white calibration plate;
9. Large capacity storage space, over 20,000 measurement data;
10. Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers’ demand for color measurement;
11. Camera Locating Function, better position;
12. PC software has a powerful function extension.
| Model | SP-CLR301 |
| Optical Geometry | Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle) |
| Integrating Sphere Size | 48mm |
| Light Source | Combined LED Light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Single Aperture: 8mm/10mm |
| Specular Component | SCI&SCE |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO), | |
| Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness | |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50 |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 2.6s |
| Repeatability | MAV/SCI: ΔE*≤0.06 |
| Inter-instrument Error | MAV/SCI: ΔE*≤0.4 |
| Measurement Mode | Single Measurement, Average Measurement |
| Locating Method | Camera View Finder Locating |
| Battery | Li-ion battery. 5000 measurements within 8 hours |
| Dimension | L*W*H=184*77*105mm |
| Net/ Gross Weight (kg) | 2/ 4.8 |
| Package Dimension (W*D*H) (mm) | 460*380*320 |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Language | English, Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover |
| Optional Accessory | Micro Printer, Powder Test Box |
| Notes: The specifications are subject to change without notice. | |
