- Production Rate: 20L/h, 40L/h, 60L/h;
- Dispensing Rate: Up to 2L/min;
- Water Source Type: Tap water;
- Built-in 1.8L pressure water tank

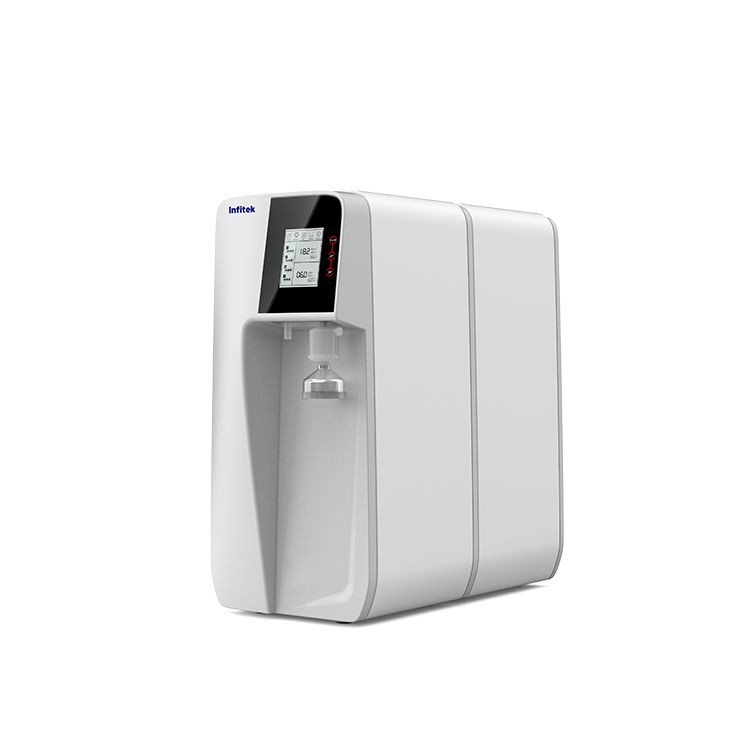

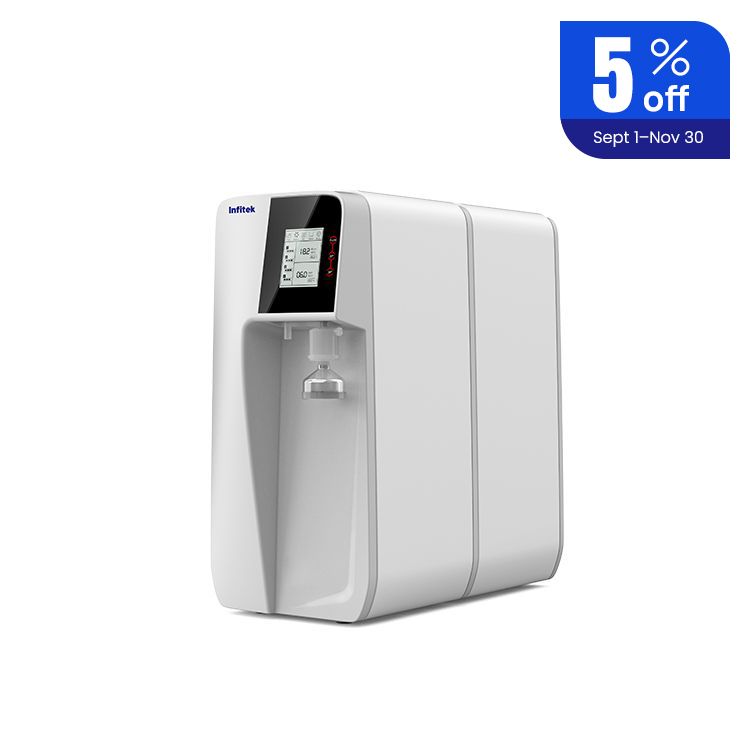

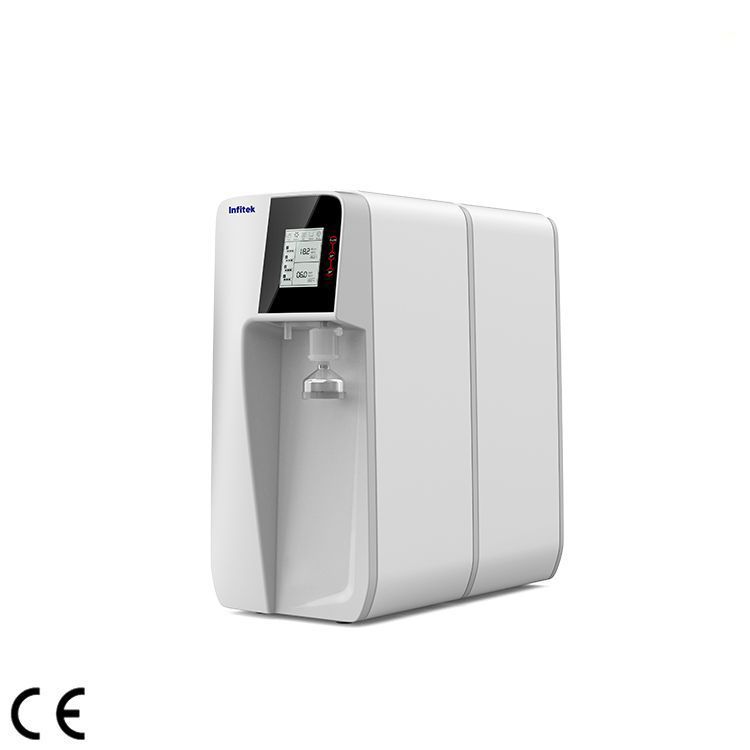

Ultra-pure Water Purifier, LWP-S2 Series
설명
Features
- Adopts automatic control system and LCD display;
- Embedded with purification column, stable and reliable single RO1stsystem with higher ion rejection rate, and DI ion-exchange purification unit with larger capacity;
- Equippedwith built-in 1.8L pressure water tank;
- Systemwater output: 20, 40, 60 L/h.;
- It can simultaneously produce ultra-pure water (18.2MΩ.cm) and primary RO water
Flow Diagram
Specification
| Model | LWP-S2-20 | LWP-S2-20V | LWP-S2-20F | LWP-S2-20VF | |||
| LWP-S2-40 | LWP-S2-40V | LWP-S2-40F | LWP-S2-40VF | ||||
| LWP-S2-60 | LWP-S2-60V | LWP-S2-60F | LWP-S2-60VF | ||||
| Type | Standard | Low TOC | Eliminating endotoxin | Synthesizing | |||
| Production Rate [1] | 20 series: 20 L/hour, 40 series: 40 L/hour, 60 series: 60 L/hour | ||||||
| Dispensing Rate [2] | Up to 2L/min | Up to 2L/min | Up to 2L/min | Up to 2L/min | |||
| Ultra–pure Water Quality [3] | |||||||
| Resistivity (25℃) [4] | 18.2MΩ.cm | 18.2MΩ.cm | 18.2MΩ.cm | 18.2MΩ.cm | |||
| Conductivity (25℃) | 0.055μs/cm | 0.055μs/cm | 0.055μs/cm | 0.055μs/cm | |||
| TOC [5] | 5ppb [6] | 2ppb [7] | 5ppb [6] | 2ppb [7] | |||
| Particles [8] | <1/ml (>0.2μm) | <1/ml (>0.2μm) | <1/ml (>0.2μm) | <1/ml (>0.2μm) | |||
| Bacteria [8] | <0.01 CFU/ml | <0.01 CFU/ml | <0.01 CFU/ml | <0.01 CFU/ml | |||
| Endotoxin [8] | N/A | N/A | <0.001 EU/ml | <0.001 EU/ml | |||
| RNases [8] | N/A | N/A | 1 pg/ml | 1 pg/ml | |||
| DNases [8] | N/A | N/A | 5 pg/ml | 5 pg/ml | |||
| Protease [8] | N/A | N/A | 0.15μg/ml | 0.15μg/ml | |||
| RO1st Water Quality [3] | |||||||
| Ion Rejection Rate | 98%-99%
(with new RO module) |
98%-99%
(with new RO module) |
98%-99%
(with new RO module) |
98%-99%
(with new RO module) |
|||
| Organic Rejection Rate | >99% (MW>300 Dalton) | >99% (MW>300 Dalton) | >99% (MW>300 Dalton) | >99% (MW>300 Dalton) | |||
| Particles and Bacteria Rejection Rate | >99% | >99% | >99% | >99% | |||
| Feed Water Requirements | |||||||
| Water Source Type | Tap water | Tap water | Tap water | Tap water | |||
| Pressure | 1-6 bar | 1-6 bar | 1-6 bar | 1-6 bar | |||
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | |||
| Conductivity | <2000μs/cm | <2000μs/cm | <2000μs/cm | <2000μs/cm | |||
| Total Hardness (In CaCO3) | <300ppm | <300ppm | <300ppm | <300ppm | |||
| TOC | <2000ppb | <2000ppb | <2000ppb | <2000ppb | |||
| Free Chlorine | <3 ppm | <3 ppm | <3 ppm | <3 ppm | |||
| pH | 4-10 | 4-10 | 4-10 | 4-10 | |||
| Dissolved CO2 | <30 ppm | <30 ppm | <30 ppm | <30 ppm | |||
| Electricity | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | 100-240V, 50/60Hz | |||
| Total Power | 20 series: 48W, 40 series: 72W, 60 series: 120W | ||||||
| Dimension of Main Host (L*W*H) | 273*555*568mm | 273*555*568mm | 273*555*568mm | 273*555*568mm | |||
| Weight | About 21kg | About 21kg | About 21kg | About 21kg | |||
[1] Affected by inlet water quality, pressure, temperature and status of RO membrane;
[2] Affected by the tank status and terminal filter;
[3] The following values are typical and may vary depending on the nature and concentration of feed water contaminants;
[4] According to USP requirements, the resistivity can be displayed as a non-temperature-compensated value;
[5] Affected by the type of organics;
[6] Inlet TOC<1000ppb, follow professional operating procedures and correct sampling conditions;
[7] Inlet TOC<50ppb, follow professional operating procedures and correct sampling conditions;
[8] Equipped with terminal micro-filter and follow professional operating procedures and correct sampling conditions；
