- Capacity: 24L,52L,91L
- Vacuum Degree Range: <133Pa
- Temp. Range: RT+10-250℃

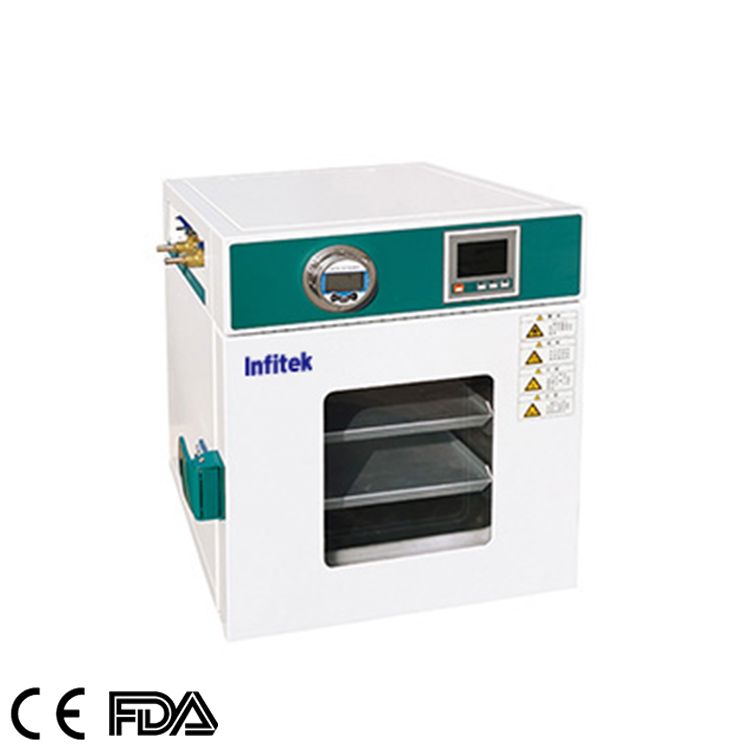

Vacuum Oven, DOV-25S, DOV-55S, DOV-90S
설명
Vacuum Oven
Features
1.4-sides Heating method, Temperature conduction by shelves, more efficiency.
2. inflatable port, once-forming thermostability silica gel Sealant strip, with good tightness.
3. Double Observation glass window, inner is explosion-proof glass, outside is resin protection plate, more safety.
4. Fastening handle, convenient for opening and closing.
5. LCD controller, multiple groups of date3 display on one screen, intelligent PID control system, with PT100 sensor.
6. LCD vacuum gauge, accuracy class 0.5, Mpa, Kpa, bar, Psi, KGF/cm2 five pressure units optional switch.
| Model | DOV-25S | DOV-55S | DOV-90S | |
| Capacity | 24L | 52L | 91L | |
| Heating Mode | Four waits heat conduction and decompression | |||
| Function | Temp. Range | RT+10-250℃ | ||
| Vacuum Degree Range | <133Pa | |||
| Temp. Resolution Ratio | 0.1℃ | |||
| Temp. Motion | ±1℃ | |||
| Heating-Up Time | 80 min | 100 min | 120 min | |
| Structure | Inner Chamber | High Quality stainless steel sheet | ||
| Outer Shell | cold rolling steel electrostatic spraying exterior | |||
| Insulation Layer | Aluminium silicate fibre | |||
| Heater | stainless steel electric heating tube | |||
| Observation Window | Bullet proof glass, acrylic exterior protrction | |||
| Nozzle Diameter | 10mm | |||
| Controller | Temp. Control Mode | Two temperature section | ||
| Temp. Setting Mode | Touch button setting | |||
| Timer | 0-9999 minutes (with timing wait function) | |||
| Operation Function | Fixed temperature operation,timing function, auto stop | |||
| Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memory | |||
| Temp. Sensor | PT100 | |||
| Safety Device | Over-temperature temperature sound-light alarm | |||
| Accessory | Shelf | 2 | ||
| Shelf Frame | 4 | |||
| Specification | Load per Rack | 15kg | ||
| Shelf Space | 100mm | 140mm | 185mm | |
| Number of Shelf | 2 | |||
| Consumption | 800W | 1400W | 2000W | |
| Internal Size(W*D*H) | 300*300*270mm | 450*450*450mm | 450*450*450mm | |
| External Size(W*D*H) | 480*480*606mm | 670*645*906mm | 640*590*780mm | |
| Package Size(W*D*H) | 590*550*750mm | 700*620*820mm | 730*690*940mm | |
| Power Supply(50/60HZ) | AC110/220V±10%, 50/60Hz/3.6A | AC110/220V±10%, 50/60Hz/6.3A | AC110/220V±10%, 50/60Hz/9.1A | |
| Current Rating | ||||
| Net/Gross Weight | 42/52kg | 67/92kg | 82/105kg | |
| Optional Accessories | silica gel connecting pipe, vacuum pump | |||
