- Internal Volume of Incubator: 57L
- Incubation Chamber Temperature Range: RT+3℃ ~ 60℃
- Anaerobic Grade: Oxygen content in operation chamber ≤ 0.5%
- The chamber is equipped with a UV germicidal lamp

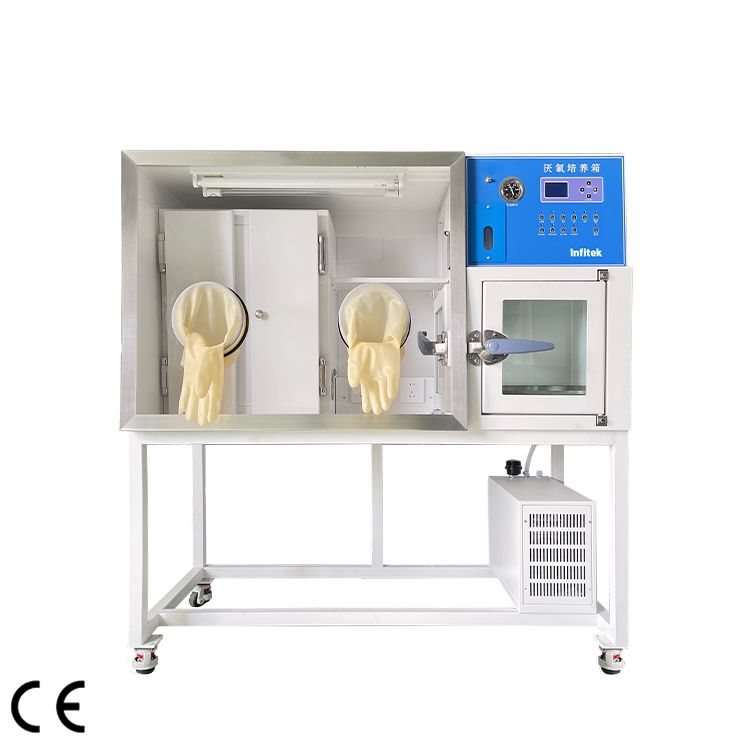

Anaerobic Incubator, ICB-AN-HYQIII
설명
Application
The anaerobic incubator is a specialized device for bacterial culture and operation under anaerobic conditions. It provides a strict anaerobic environment, constant temperature incubation conditions, and a systematic, scientific workspace. It is applied in the testing and research of pathogenic anaerobic bacteria, microbiological inspection for food hygiene, and other fields requiring hypoxic, microaerobic, and anaerobic experimental conditions.
Features
- It consists of a constant temperature incubator, anaerobic operation chamber, sampling chamber, gas and circuit control systems, cabinet stand, bottle rack, and wax melting
- By using different components of mixed gases, it can create stable extreme anaerobic, microaerophilic, and low-oxygen environments, flexibly cultivating different microbial culture conditions.
- Equipped with a microcomputer intelligent PID temperature controller, which accurately reflects and controls the temperature inside the incubator.
- The front windows of the operation and sampling chambers are made of impact-resistant special transparent glass. Dedicated gloves are used for operation, ensuring flexibility, convenience, reliability, and comfort.
- The operation chamber is equipped with a specialized inoculating loop sterilizer, wax melting disinfection device, and deoxygenation catalyst.
- The inner chamber of the incubator is made of SUS304 stainless steel.
- The chamber is equipped with a UV germicidal lamp.
- (Optional) Independent external temperature protection device.
- (Optional) RS485 communication port.
- (Optional) Mini thermal printer or mini dot matrix printer.
- (Optional) Two sets of 0.22μm replaceable HEPA high-efficiency filters: Set A is used to remove trace impurities from the injected gas; Set B is used to remove harmful microorganisms and odors from the exhaust gas. (Based on actual usage, the recommended filter replacement interval is 3 to 6 months.)
Specifications
| Model | ICB-AN-HYQIII |
| Incubation Chamber Temperature Range | RT+3℃ ~ 60℃ |
| Temperature Uniformity | ≤ ±1℃ |
| Temperature Fluctuation | ≤ ±0.3℃ |
| Anaerobic Grade | Oxygen content in operation chamber ≤ 0.5% |
| Anaerobic State Formation Time
(Sampling Chamber) |
≤ 15 minutes |
| Anaerobic (Microaerophilic) Formation Method (Sampling Chamber) | Vacuum + Gas displacement (using 99.99% N₂ or mixed gas of 5% H₂, 10% CO₂, and 85% N₂)
Vacuum + Gas displacement (using 99.99% N₂ or mixed gas of 5% O₂, 10% CO₂, and 85% N₂) |
| Anaerobic Process Operation (Sampling Chamber) | One-touch automatic execution |
| Anaerobic State Formation Time (Operation Chamber) | ≤ 1.5 hours |
| Anaerobic (Microaerophilic) Formation Method (Operation Chamber) | Vacuum + Gas displacement (using 99.99% N₂ or mixed gas of 5% H₂, 10% CO₂, and 85% N₂)
Vacuum + Gas displacement (using 99.99% N₂ or mixed gas of 5% O₂, 10% CO₂, and 85% N₂) |
| Anaerobic Maintenance Time (Operation Chamber) | > 12 hours (after stopping trace mixed gas supplementation) |
| Anaerobic Process Operation (Operation Chamber) | Manual button switching |
| Internal Dimensions of Incubation Chamber | 42×29×47.5cm |
| Internal Volume of Incubator | 57L |
| Sampling Chamber Dimensions | 40×33×32cm |
| Operation Chamber Dimensions | 94.4×67×74.4cm |
| External Dimensions | 140×68.8×141.8cm |
| Temperature Controller | LCD display, PID temperature controller |
| Shelves | 2 |
| Electricity | 1Ø 220V, 50Hz |
| Power | 730W |
Note:
- The external height (H) includes 8cm accessories.
- Customers are required to provide their own experimental gas cylinders, gases, pressure reducing valves, and catalysts.
