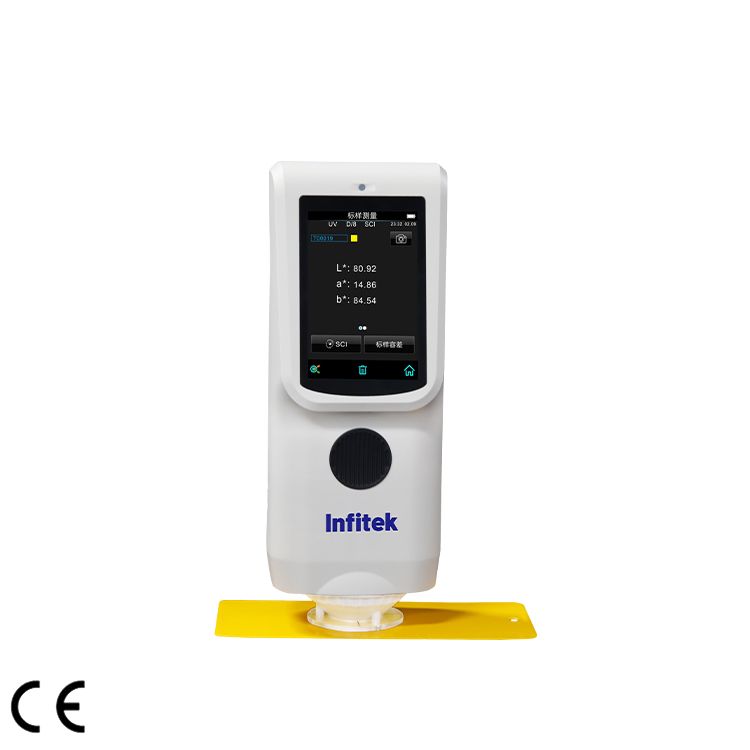

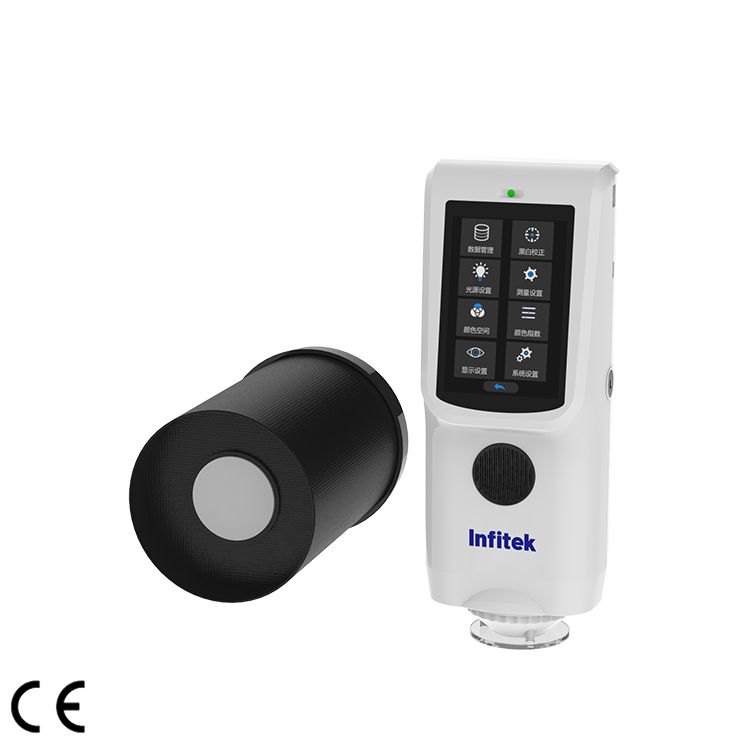

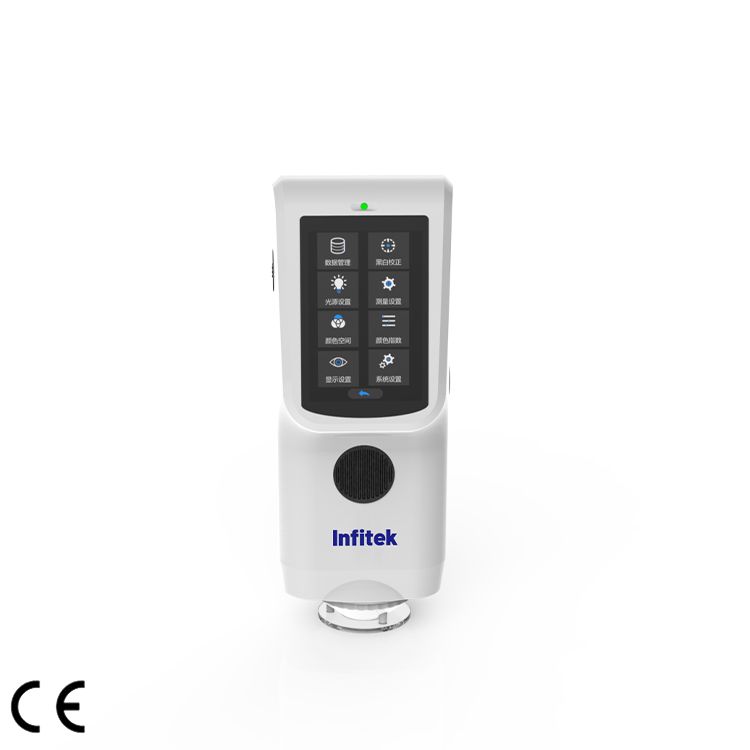

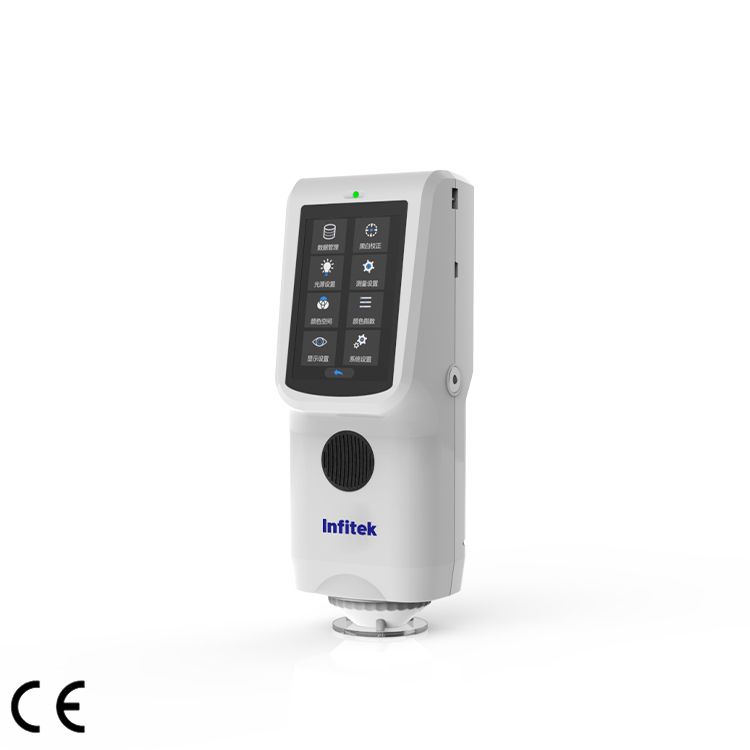

The SP-CLR8 is a portable spectrophotometer. It uses a built-in silicon photodiode array sensor and an imported white board, while the repeatability ΔE*ab can be easily controlled within 0.04. Its powerful performance configuration and excellent inter-instrument error make color measurement more professional, while also ensuring the consistency of measurement data across multiple devices.

Features

1. Adoptsfull-band balanced LED light source

The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of spectrum of white LEDs in a specific band, and ensures the measurement speed of the instrument and the accuracy of the measurement results.

2. Silicon photodiode array (double 32 array) sensor

3. Grating Spectrophotometric technology

Using grating spectrophotometric technology, it has higher resolution and makes color measurement more accurate.

4. Place the base safely to ensure that the whiteboard is not dirty.

5. Professional whiteboard

6. Fast charging

Special fast charging method, low-voltage reminder to charge or use of off-hours to charge, ensures the capacity and life of the battery (note: frequent repeated charging of the battery causes much harm).

7. Novel and fashionable appearance design based on ergonomics

The position of the hand grip and the measurement button are carefully designed to meet different gripping habits. The smooth and fine surface is derived from the art of high-precision appearance processing.

8. Customize a single measuring aperture to accurately meet the needs of sample measurement

The SP-CLR8 spectrophotometer offers Ø8mm or Ø4mm platform apertures to meet your specific sample measurement requirements.

9. Excellent inter-instrument errorand repeatability to ensure the consistency of measurement data across multiple devices.

10. Diversified data display

The SP-CLR8 spectrophotometer can intuitively display reflectance (reflectance at three specific wavelengths specified by the user), sample chromaticity values, color difference values/graphs, pass/fail results, color simulation, color offset, and other data. This is convenient to view and also greatly improves the user’s work efficiency.

Specifications

Model	SP-CLR8
Optical Geometry	D/8 (diffuse illumination, 8° direction reception)
	SCI measurement
	Comply with standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
Characteristics	Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries.
Integrating Sphere Size	Φ40mm
Light Source	Combined full-spectrum LED light source
Spectroscopic Method	Planar grating
Sensor	Silicon photodiode arrays (dual row 32 groups)
Wavelength Range	400~700nm
Wavelength Interval	10nm
Semiband Bandwidth	10nm
Measurement Range	L: 0~120
Measurement Range	Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm)
Measurement Aperture	Single aperture: Φ8mm (Φ4mm optional)
Focusing Method	Fixed focus
Specular Component	SCI
Color Space	CIE LAB, XYZ, Yxy, LCh
Color Difference Formula	ΔEab, ΔE00
Observer Angle	10°
Illuminant	D65, A, F2 (CWF)
Displayed Data	Reflectivity (at 3 specific wavelengths specified by the user), chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset
Display Accuracy	0.01
Measurement Time	Approx. 1.5s
Repeatability	Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	MAV/SCI, within ΔE*ab 0.35 (Average for 12 BCRA Series II color tiles)
Measurement Method	Single measurement, average measurement (2~99 times)
Locating Method	Stabilizer locating
Battery Power	Lithium battery, 6000 times in 8 hours
Illuminant Life Span	5 years, more than 3 million times measurements
Display	TFT true color 3.5inch, capacitive touch screen
Data Port	USB, Bluetooth® 5.0
Data Storage	500 standard samples, 1,0000 samples
Language	English
Operating Temperature Range	0~40℃, 0~85%RH (no condensation), altitude < 2000m
Storage Temperature Range	-20~50℃, 0~85%RH (no condensation)
Standard Accessories	Power adapter, data cable, manual, black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture
Optional Accessories	USB micro printer, powder test box, Bluetooth micro printer, holder base
External Dimensions (LWH)	8171214mm
Weight	About 460g
