- Chemically Resistant Diaphragm Vacuum Pump
- Pumping Speed: 30 L/min, 60 L/min
- Ultimate Vacuum: 50 mbar, 150 mbar
- Number of Pump Heads: 1, 2
- Diaphragm Material: PTFE-bonded

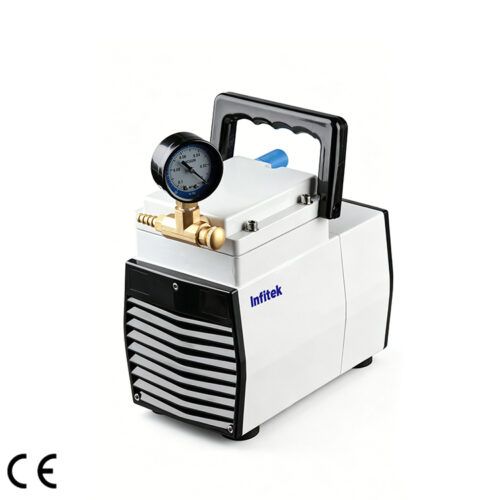

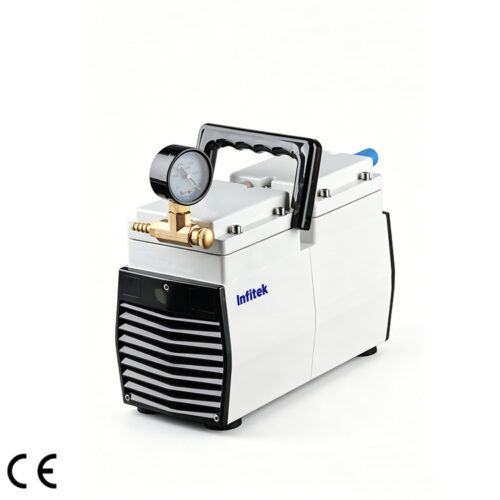

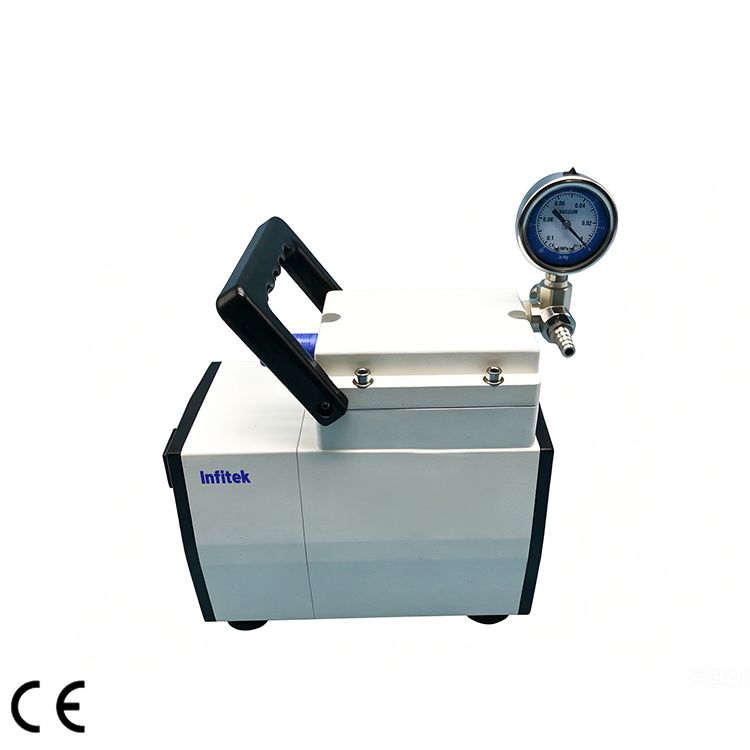

Diaphragm Vacuum Pump, VACP-LHP Series
설명
Chemically resistant diaphragm vacuum pumps are designed for aggressive media. These portable, oil-free vacuum pumps are ideal for use with all brands of rotary evaporators, concentrators, vacuum ovens, and filtration devices. They can be used to transfer and evacuate almost all laboratory gases and vapors.
Advantages
- The pump chamber is made of chemically resistant materials to withstand extreme chemicals.
- PTFE-bonded diaphragm.
- Easy to use and maintain.
Specifications
| Model | VACP-LH51P | VACP-LH52P | VACP-LH102P |
| Pumping Speed (L/min) | 30 | 30 | 60 |
| Ultimate Vacuum (MPa) | >0.085 (150 mbar) | >0.095 (50 mbar) | >0.085 (150 mbar) |
| Pressure (psi) | / | / | 40 |
| Number of Pump Heads | 1 | 2 | 2 |
| Motor Power (W) | 180 | 180 | 180 |
| Diaphragm Material | PTFE-bonded | PTFE-bonded | PTFE-bonded |
| Sound Emission (dB) | <50 | <50 | <50 |
| Dimensions (L*W*H) (mm) | 250*135*210 | 315*135*210 | 315*135*210 |
| Weight (kg) | 7.5 | 10 | 10 |
