- The eyepiece has a wide field of view, with a field of view of 22mm;
- Coaxial coarse and fine focusing, with locking and limit devices, fine-division value: 2µm;

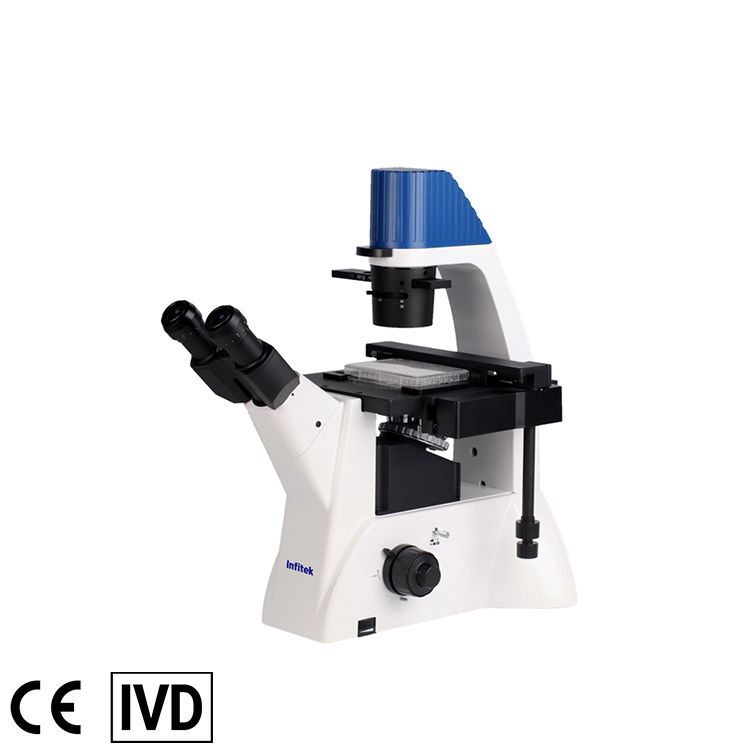

| Model | MSC-IV52BN |
| Eyepiece | SWF10X/22 flat field eyepiece, high eye point, one of the eyepieces can be adjusted for diopter |
| Centering telescope | |
| Eyepiece Tube | 45° tilt, interpupillary distance: 53-75mm, diopter adjustable |
| Objective | Infinity long working distance plan achromatic objective Plan 4X/0.12 working distance: 10.8mm |
| Infinity long working distance plan achromatic objective LACH Plan 40X/0.60 working distance: 3.5mm | |
| Infinity long working distance plan achromatic phase contrast objective Plan10X/0.25 PH working distance: 4.1mm | |
| Infinity long working distance plan achromatic phase contrast objective Plan20X/0.45 PH working distance: 5mm | |
| Focusing Mechanism | Coaxial coarse and fine adjustment, equipped with limit device and locking device, low hand position coaxial focusing hand wheel, fine division value 2µm |
| Nosepiece | Quintuple nosepiece |
| Stage | Fixed stage size: 227mm×208mm; Mechanical movement, moving range: 135mm×77mm |
| Round transparent stage: outer circle φ118mm, inner circle φ68mm | |
| The inner groove size of the culture dish support plate 1 is 86mm×129.5mm, which can be adapted to the round culture dish φ90mm; | |
| The inner groove size of the culture dish support plate 2 is 34mm×77.5mm, which can be adapted to the round culture dish φ68.5mm; | |
| The inner groove size of the culture dish support plate 3 is 57mm×82mm, which can be adapted to the round culture dish φ60mm; | |
| The inner groove size of the culture dish support plate 4 is 29mm×77.5mm, which can be adapted to the round culture dish φ35mm; | |
| Phase Difference Ring Plate | 10X phase difference ring*1, |
| 20X/40 phase difference ring shared 1 | |
| Camera Interface | Built-in 0.75XC |
| Model | MSC-IV52BN |
| Eyepiece | SWF10X/22 flat field eyepiece, high eye point, one of the eyepieces can be adjusted for diopter |
| Centering telescope | |
| Eyepiece Tube | 45° tilt, interpupillary distance: 53-75mm, diopter adjustable |
| Objective | Infinity long working distance plan achromatic objective Plan 4X/0.12 working distance: 10.8mm |
| Infinity long working distance plan achromatic objective LACH Plan 40X/0.60 working distance: 3.5mm | |
| Infinity long working distance plan achromatic phase contrast objective Plan10X/0.25 PH working distance: 4.1mm | |
| Infinity long working distance plan achromatic phase contrast objective Plan20X/0.45 PH working distance: 5mm | |
| Focusing Mechanism | Coaxial coarse and fine adjustment, equipped with limit device and locking device, low hand position coaxial focusing hand wheel, fine division value 2µm |
| Nosepiece | Quintuple nosepiece |
| Stage | Fixed stage size: 227mm×208mm; Mechanical movement, moving range: 135mm×77mm |
| Round transparent stage: outer circle φ118mm, inner circle φ68mm | |
| The inner groove size of the culture dish support plate 1 is 86mm×129.5mm, which can be adapted to the round culture dish φ90mm; | |
| The inner groove size of the culture dish support plate 2 is 34mm×77.5mm, which can be adapted to the round culture dish φ68.5mm; | |
| The inner groove size of the culture dish support plate 3 is 57mm×82mm, which can be adapted to the round culture dish φ60mm; | |
| The inner groove size of the culture dish support plate 4 is 29mm×77.5mm, which can be adapted to the round culture dish φ35mm; | |
| Phase Difference Ring Plate | 10X phase difference ring*1, |
| 20X/40 phase difference ring shared 1 | |
| Camera Interface | Built-in 0.75XC |
Camera Specification
| Model | CAM-D50 |
| Effective Pixels | 5 Million |
| Resolution | 2592 × 1944 |
| Chip Size | 1/2.5＂ |
| Pixel Size | 2.2µm×2.2µm |
| Resolution and Frame Rate | 2592×1944
7 frames/second |
| 2048×1536(R0I)
10.4 frames/second |
|
| 1920×1080(R0I)
15.4 frames/second |
|
| 1280×960(SUM)
17.2 frames/second |
|
| 1280×960(BIN)
17.2 frames/second |
|
| 640×480(SUM)
26.7 frames/second |
|
| 640×480(BIN)
26.7 frames/second |
|
| Any Size R0I | |
| Scanning Method | Progressive scan / Continuous output |
| Shutter Type | Electronic rolling shutter |
| Exposure Time | 59µs – 3s |
| Effective Gain | 1x-8x |
| Spectral Response | 380nm~650nm |
| Trigger Mode | Soft trigger |
| A/D Conversion | 8Bit |
| Exposure Function | Manual exposure / Automatic exposure / Area exposure |
| White Balance | Auto white balance / One-button white balance / Regional white balance |
| Image Format | TIF, BMP, JPG, RAW |
| Image Cache | 32Mb |
| Software Interface | DirectShow/TWAIN |
| Operating System | Windows XP 32Bit; Windows 7/8/10 32/64Bit |
| Data Interface | USB2.0 B type interface, 480Mb/s |
| External Dimension | φ76mm×48.7mm |
| Model | CAM-D50 |
| Effective Pixels | 5 Million |
| Resolution | 2592 × 1944 |
| Chip Size | 1/2.5＂ |
| Pixel Size | 2.2µm×2.2µm |
| Resolution and Frame Rate | 2592×1944
7 frames/second |
| 2048×1536(R0I)
10.4 frames/second |
|
| 1920×1080(R0I)
15.4 frames/second |
|
| 1280×960(SUM)
17.2 frames/second |
|
| 1280×960(BIN)
17.2 frames/second |
|
| 640×480(SUM)
26.7 frames/second |
|
| 640×480(BIN)
26.7 frames/second |
|
| Any Size R0I | |
| Scanning Method | Progressive scan / Continuous output |
| Shutter Type | Electronic rolling shutter |
| Exposure Time | 59µs – 3s |
| Effective Gain | 1x-8x |
| Spectral Response | 380nm~650nm |
| Trigger Mode | Soft trigger |
| A/D Conversion | 8Bit |
| Exposure Function | Manual exposure / Automatic exposure / Area exposure |
| White Balance | Auto white balance / One-button white balance / Regional white balance |
| Image Format | TIF, BMP, JPG, RAW |
| Image Cache | 32Mb |
| Software Interface | DirectShow/TWAIN |
| Operating System | Windows XP 32Bit; Windows 7/8/10 32/64Bit |
| Data Interface | USB2.0 B type interface, 480Mb/s |
| External Dimension | φ76mm×48.7mm |
